phkmalloc

Jason Evans laid jemalloc to rest yesterday, and gave a kind shoutout to my malloc, aka. “phkmalloc”, and it occured to me, that I should write that story down.

I wrote a little bit about it in my article for the 30 year aniversary issue of the FreeBSD Journal but there is more to it than that.

Why

In FreeBSD we inherited Chris Kingsley’s malloc implementation from BSD, it worked, and we had much larger fish to fry, so we paid it no attention.

During 1994 and 1995, RAM prices went through the roof, and therefore, conciously or subconciously, efficient use of RAM became a concern.

In my case it became a huge concern, because my machine only had 4MB RAM and being release engineer, I ran GCC a lot.

My system paged more than I thought it should, and in particular I noticed a very distinct burst of disk-activity whenever GCC terminated.

The “death-rattle” was even more prominent with Tcl and Tk programs.

That made no sense to me, why would things page when the program was freeing things prior to termination ?

The “canonical” malloc implementation, the malloc implementation to start all malloc implementations, is in chapter 8.7 in The C Programming Language, and as all code in that book it is simple and elegant: A linked list holds the free blocks of memory, and that is pretty much it.

If you are up for a challenge: Go read chapter 8.7 now, and see if you can predict what comes next :-)

The problem

K&R’s malloc was written on a swapping system, probably a PDP-11, where either the entire process is in memory or the process does not run.

In the meantime we had gotten Virtual Memory, where pages may or may not be in RAM when you need them, but the kernel handles that, so from a programmes point of view, the only difference is that sometimes a memory access causes disk activity.

Chris Kingsley’s malloc starts with this comment:

/*
 * malloc.c (Caltech) 2/21/82
 * Chris Kingsley, kingsley@cit-20.
 *
 * This is a very fast storage allocator.  It allocates blocks of a small
 * number of different sizes, and keeps free lists of each size.  Blocks that
 * don't exactly fit are passed up to the next larger size.  In this
 * implementation, the available sizes are 2^n-4 (or 2^n-10) bytes long.
 * This is designed for use in a virtual memory environment.
 */

So clearly he had thought about the swap/paging thing, and yet, performance felt less than stellar and there was that death-rattle phenomena.

The first things I did was to hack a version of the malloc, to log all calls to malloc(3), free(3) and realloc(3) to a file and tried to make sense of the, for the time, vast amount of data that produced.

It was pretty obvious from my PostScript plots, that performance was far from stellar, and even more obvious that the death-rattle was associated with freeing a lot of memory.

Why would freeing memory cause the kernel to page things in and out ?

To free(3) a block of memory, you have to walk the free-list to find the right place to insert it, and the linked list is stored in the first couple of words of all the free chunks.

Worst case, to free a chunk of memory, we have to read the first couple of words of all the memory not currently use. The death-rattle was the kernel paging all the memory the process explicitly did not use, into RAM, so the process could mark even more memory as explicitly not used.

I may have exclaimed “Duh!” at this point.

The fix(es)

I went to work fixing this, and my first hack was brutal: Whenever a chunk was to be freed, I would chop a small struct from front of the first free chunk on the free list:

struct free_chunk {
        struct free_chunk       *next;
        struct free_chunk       *prev;
        void                    *chunk;
        size_t                  length;
};

And put that structure on the free list, so that I would never have to touch the actual free memory again, unless it was reallocated.

That nearly eliminated the death-rattle, and things ran markedly faster.

Calling free(3) with only a pointer, and no size, means malloc implementations need some “trick” to remember how big that chunk was when it was allocated.

K&R malloc, and every other malloc, hides that in a small struct right before the chunks:

free(ap)  /* put block ap in free list */
char *ap:
{
     register HEADER *p, *q;

     p = (HEADER *)ap -1;  /* point to header */
     […]

That bugged me, because it meant that a chunk of memory which had been unused for a long time (in VM-traffic terms) before the process calls free(3) still get paged into RAM just to mark it unused.

That reminded me of a trick I had seen on a very old and very strange computer, which needed to keep track of stuff on the drum memory.

Biting the bullet

So I blew away all of Chris’ code and started from scratch.

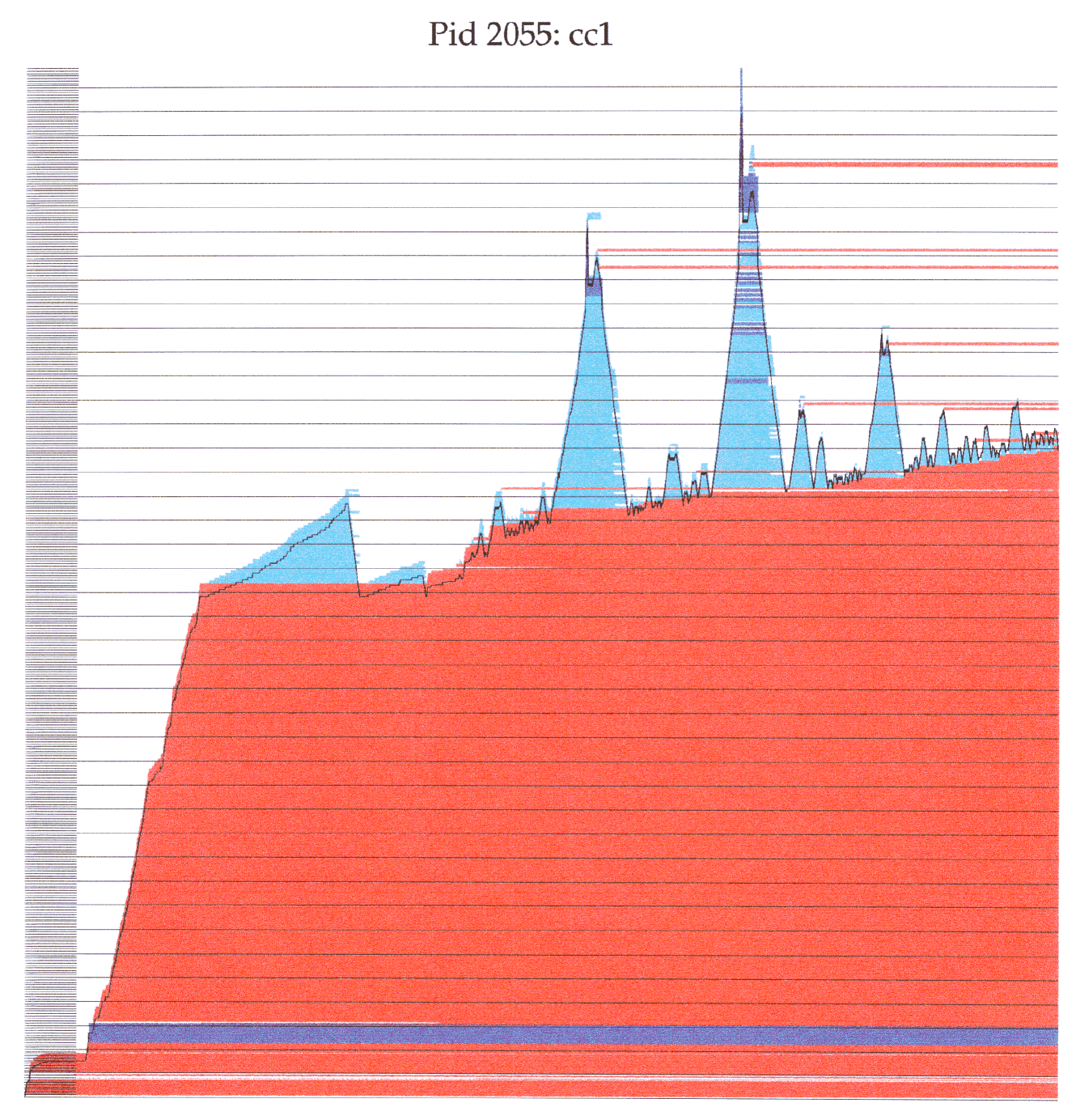

Along the way I collected a lot of data and plotted it on my inkjet printer, and one of those plots still have a place in my heart and on my wall, I call it “Towers of Barad-dûr”:

I will not recount the resulting architecture, you can find that in the paper I wrote for the “FreeNix” track of the USEnix Annual Technical Conference in 1998 in New Orleans:

Malloc(3) revisited

Messing up with malloc(3)/free(3)/realloc(3) was a very well known problem, and there were several malloc implementations were written explicitly to catch that sort of trouble, but clearly not enough people used them, usually because all the checking made them slow.

Because I kept the “metadata” away from the chunks themselves, and because I used a binary “buddy” layout for sub-page-sized allocations, I could detect some of the most common mistakes.

First I thought “We’re not having any of that” and made phkmalloc abort(2) on any wrong usage. Next time I rebooted my laptop fsck(8) aborted, and left me in single user mode until I could fix things with a floppy disk.

So I changed the logic to detect the problems, spit out a warning but do nothing when free(3) was passed bad pointers.

But I wanted to be able to control that at run time, but how do you run time configure malloc(3) ? An environment variable was obvious, but how do you set the system wide default ? It may also sound obvious to have a configuration file, but calling open(2)/read(2)/close(2) and doing a bunch of string parsing in all programs seemed excessive, and I was not even sure that it would be possible, because, by definition, malloc(3) was not working yet.

A symbolic link does not have to point to something in the filesystem, it is essentially just a very tiny text-file:

ln -sf A /etc/malloc.conf

tells phkmalloc to call abort(2) at the first sign of trouble.

Later more flags were added: J for ‘fill with junk’, Z for “fill with zeros” and so on.

Reasonable people who’s opinions I respect, have called this hack anything from “brilliant” to “an afront to all morals”. I think it is OK.

Rubber - Road, Road - Rubber

When I got to a point where I felt performance was sufficiently improved, not only over Chris’ malloc, but also over the GNU-malloc which we used as a bandaid in some corners, I committed “phkmalloc” in the middle of september 1995:

``phkmalloc''
Performance is comparable to gnumalloc if you have sufficient RAM, and
it screams around it if you don't.
Compiled with "EXTRA_SANITY" until further notice.
see malloc.3 for more details.

Lots of positive feedback on the speedup, but also trouble reports.

I want to credit the band at this point: Instead of blaming phkmalloc, demanding a backout, people went to work, even if things could be pretty obscure.

For instance John Dyson:

These changes fix a bug in the clustering code that I made worse when adding
support for EXT2FS.  Note that the Sig-11 problems appear to be caused by
this, but there is still probably an underlying VM problem that let this
clustering bug cause vnode objects to appear to be corrupted.

The direct manifestation of this bug would have been severely mis-read
files.  It is possible that processes would Sig-11 on very damaged
input files and might explain the mysterious differences in system
behaviour when phk's malloc is being used.

Or later the same day Bill (“Wild Bill Ethernet”) Paul:

phkmalloc strikes!

#ifdef out a number of calls to free() left over from the original
GNU ypserv implementation. As near as I can tell, the Berkeley DB
package does its own garbage collection, hence the caller doesn't
have to worry about free()ing the memory returned in the DBT
structures during lookups (I'm still not 1005 sure about this:
the DB code is very hard to follow. I must use dynamically
allocated memory since you can retreive arbitrarily large records
from a database, but I'm not sure where it ends up letting go
of it). This was not true with GDBM; you had
to do your own garbage collection.

The general rule is that if you allocate memory inside an RPC
service routine, you have to free() it the next time the routine is
called since the underlying XDR routines won't do it for you.
But if the DB package does this itself, then we don't need to do
it in the main program.

Note that with the original malloc(), there were never any errors
flagged. phkmalloc complained quite loudly.

I would be wrong to say that “all Hell broke loose”, but maybe Heck had a cat-flap, and we would need to get to the bottom of this, before our next release, which lead to one of my all-time favorite commit message punch-lines:

phkmalloc/2
"zero' and 'junk' options to help find and diagnose malloc abuse.
EXTRA_SANITY defaults "junk" to on.
[…]

SANITY is not an option anymore. (!!)

And then it just went on, and on and on:

Avoid bogus free() of a junk pointer.
/bin/sh corruption caused by non-zeroed malloc() in libedit
Another use of un-cleared returns from malloc squashed...
Two uninitialised variables were causing a phkmalloc warning
Phkmalloc strikes again.
Remove one bogus free(result) (from _havemaster()) that slipped by me.
I suppose this means we can chalk up another victory for phkmalloc. :)
Fix some long-standing malloc bugs in the package handling code
"zero' and 'junk' options to help find and diagnose malloc abuse.
[…]

I gradually made phkmalloc more and more picky, until we got to the point where it was downright hostile in -current, at a small performance cost.

Cybersomething-or-other

Because the metadata about chunks were not right next to the chunks, phkmalloc was very resistent to trivial variations of buffer-overflow attacks, resulting in a number of “linux, solaris, … are vulnerable, but FreeBSD is not.” incidents, which caused some people to mistakenly think that phkmalloc could never be compromised.

Of course phkmalloc could be comproposed!

If the program can be brought to color outside the lines, the program is unsafe. Period!

But it can be easier or harder to figure out how to exploit those mistakes.

In January 2003 Stefan Esser found a double-free in CVS, which was trivial to exploit on pretty much all platforms, but the advisory does not mention any of the three BSD’s, which had all adopted phkmalloc by then, because the proof-of-concept exploit did not work.

Four months later, somebody known to the world only as “BBP” spent 55 slides at blackhat, and a wall of text to show how it was in fact possible to craft an exploit to get through the CVS-hole, also with phkmalloc.

Good for him and hat-tip from me: At least now two people knew how phkmalloc worked :-)

But gaining people months to patch CVS, rather than mere hours is a huge win in my book, and I still count phkmalloc is my major contribution to improving cybersecurty, even if it was not yet called that.

Kirk’s mustache & Old man river

Presenting phkmalloc at USEnix ATC 1998 was an adventure in itself, with most of my worries focused on slide 20 of my presentation, where I basically told many of the unix.gods, which unaccountably attended my talk, that their code sucked:

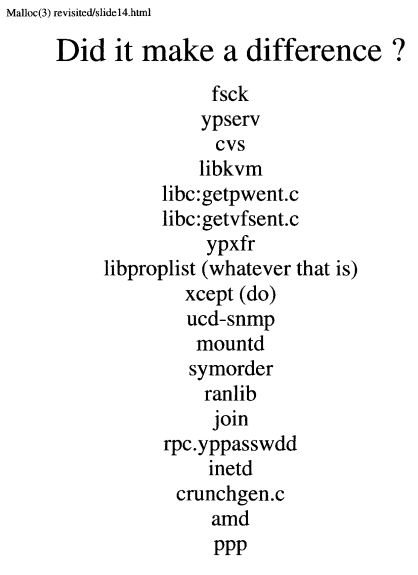

I had absolutely no idea how that would go down, but I could see no other way to drive home the point, that malloc(3) usage bugs were real, and a real problem. But being in the good old days where slides were real slides etc, I figured I could always skip that slide during the presentation, if that seemed prudent.

My brain does neither faces nor names very well, and I had never met most of the people in the packed audience before, but there were no way to miss Kirk Mckusic’s Mustache™: Center front row, or to mangle metaphors terminally: Right in my face.

I had his fsck(_ffs) at the top of the list, because it was literally the “first kill” for phkmalloc, so I decided that I would skip that slide, and only, reluctantly, put it up, if somebody asked a relevant question.

But when I got to that slide in the talk, I was running high on 100% adrenalin, slapped the slide on the projector, and started saying something about how everybody was making malloc mistakes, but I dont think anybody heard it for the laughter in the room.

I did not exactly expect to be peltered with rotten tomatoes, but I did absolutely not expect unix.gods be laughing and teasing each other for having their programs on my list. My well-meaning moralizing was 100% surplus to requirements: Everybody in that room had been there, done that, and knew the malloc(3) API was dangerous.

In retrospect: Why else would the have been there ?

I cannot remember any of the questions or who asked them: I was too shell-shocked, and after the final applause died down, I was totally flat. I left the bustle of the conference venue, walked out in the blazing sun, followed Canal Street down to the river, found a small park and for the first (and only) time in my life, I stood at the banks of the Mississippi river.

Ten years previously, I had done sound for an amateur production of Show Boat in hometown (Slagelse, Denmark), and my first real girlfriend was one of the girls from the chorus, so I couldn’t help but sing “Old man river” to myself:

Man sku' være gamle Mississippi,
drive langsomt i det grønne land,
drive under alle årets himle,
le a' kiv og kævl og tidens tand.

Floden driver, til alle tider,
[…]

While I stood there singing, a posh elderly black gentleman edged up to me, and asked in a slightly worried tone: “I can hear what you’re singing, but I cant understand any of the words ?” I told him that I was singing in Danish, and hastily disclaimed that I had not even thought about if that song would be considered an insult it modern society. “Naah, that’s OK” he answered, “I was just worried about my hearing because I couldn’t understand the words.” We chatted for a bit, and I went back to the conference, sunburned and drenched in sweat.

In retrospect, it is obvious that Kirk must have known what was comming: He had reviewed the fix to fsck himself.

Having gotten to know him afterwards, it would not even surprise me, if he had gently pulled USEnix strings, to put me to beard-to-beard with him that day: He was at least on the governing board of USEnix, possibly even its chairman.

On the last day of the conference somebody, it may have been Eric, half apologizing told me that if I had been on the main track, I would have received the “Best Paper” award, but for political reasons the FreeNix track was off limits.

No need to apologize: I did not even know the award existed, and it would never meant as much to me, as spending an hour over breakfast, chatting with Dennis Ritchie about device nodes and timekeeping in early UNIX kernels, and receiving his blessing for my DEVFS.

Your membership, should you accept it…

The USEnix presentation kind of marked the apogee of phkmalloc.

By that time we had found and fixed who knows how many malloc mistakes it had detected, not only in FreeBSD but also in the ports collection - I had long since stopped keeping track.

It had also been adopted by a lot of other projects, and I regularly received emails along the lines of “somebody told me to use phkmalloc and it immediately spotted the bug we have been chasing for ${long_time}” etc.

But multi-threading and multi-CPU systems were rapidly becoming a thing, and the tightly knit data structures of phkmalloc left no other option than to slap one big mutex around all of it, which were OK one or two CPUs, but became a performance problem from 4 cores and upwards.

RAM had also become a LOT cheaper, so some of the “bit-pinching” where also not warranted any more.

Jason tackled that in jemalloc, and I was happy to hand the job of malloc maintainer in FreeBSD over to him, and I am just as happy to induct him into the secret society of retired malloc maintainers now.

(Your laminated membership card will arrive in the mail in 12 to 18 weeks.)

phk
